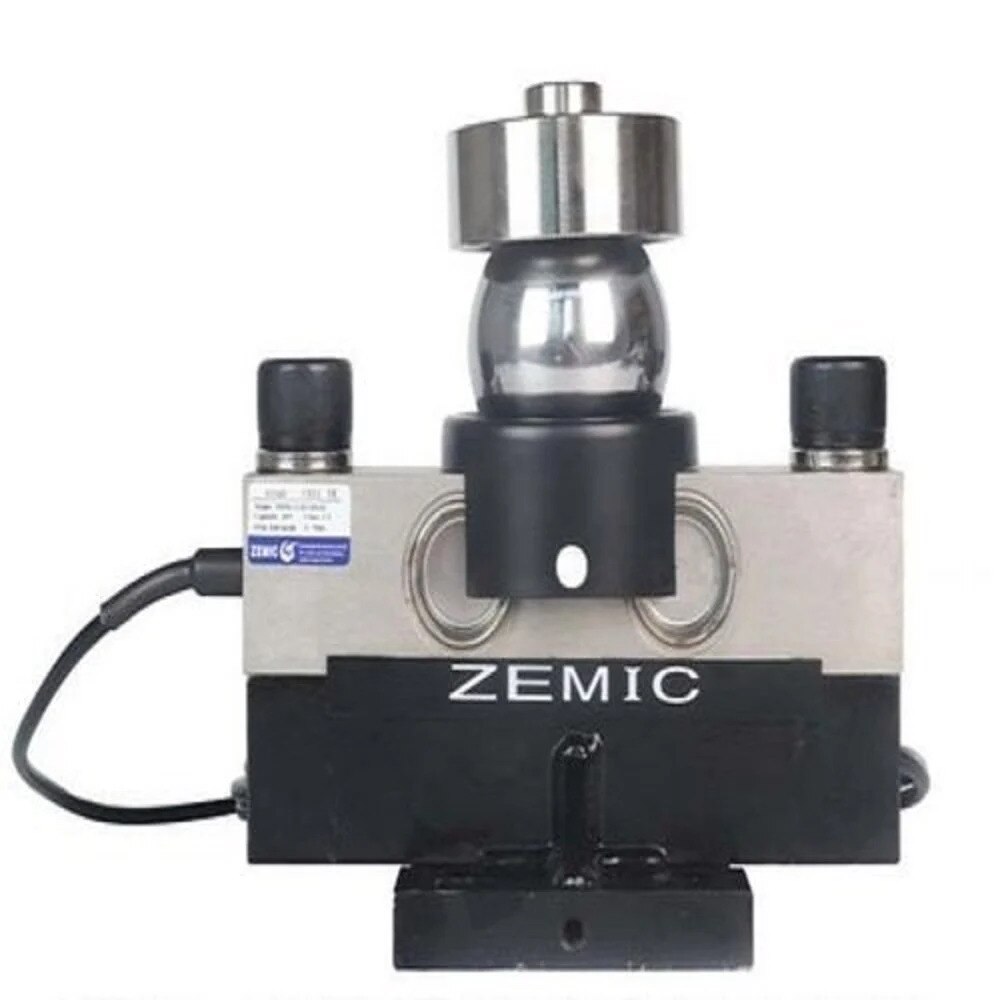

Weighbridge Load Cell

We are a leading Manufacturer of s-type load cell, weighbridge load cell, single point load cell, compression load cell, stainless steel load cells and button load cell from Vadodara, India.

Product Details: -

Brand Zemic

Model HM9B

Capacity 30 Ton

Material Stainless Steel

Ingress Protection IP68

Application Weighbridge

Features High Accuracy & Precision, Current Calibrated

Load Cell Certifications ATEX, OIML

Output Sensitivity(FS) 2.0 +/- 0.002 mV/V

Combined Error <= +/- 0.023

Creep Error (30 minutes) <= +/- 0.016

Accuracy Class OIML R60 C3

Temperature Effect on Zero <= +/- 0.015

Temperature Effect on Output <= +/- 0.011

Zero balance +/- 1.5% FS

Maximum Safe Overload 150% FS

Ultimate Safe Overload 300% FS

Recommended Excitation Voltage 5 to 12V DC

Maximum Excitation Voltage 18V DC

Input Resistance 700 +/- 7 Ohm

Output Resistance 700 +/- 7 Ohm

Insulation resistance at 50V DC >= 5000 M Ohm

Compensated Temperature Range -10 to +40 Deg C

Operating Temperatue Range -35 to +65 Deg C

Load Cell Intervals (nLC)/Divisions 3000

Cable Length 12 Meter

We supply most prominent quality Weighbridge Load Cell with the top most standards and performance

Specifications:

Hardened tool steel construction

Good side force and shock resistance

Full mounting hardware provided

Tank & Hopper Weighing

Tensile Testing

Truck Weighbridge

Environmental Protection IP68

Suitable for Harsh Industrial Applications

Cup and Steel ball mounted mechanism is self restoring and self centering

Transient Voltage Protection is provided for protection against lightning and line voltage faults
