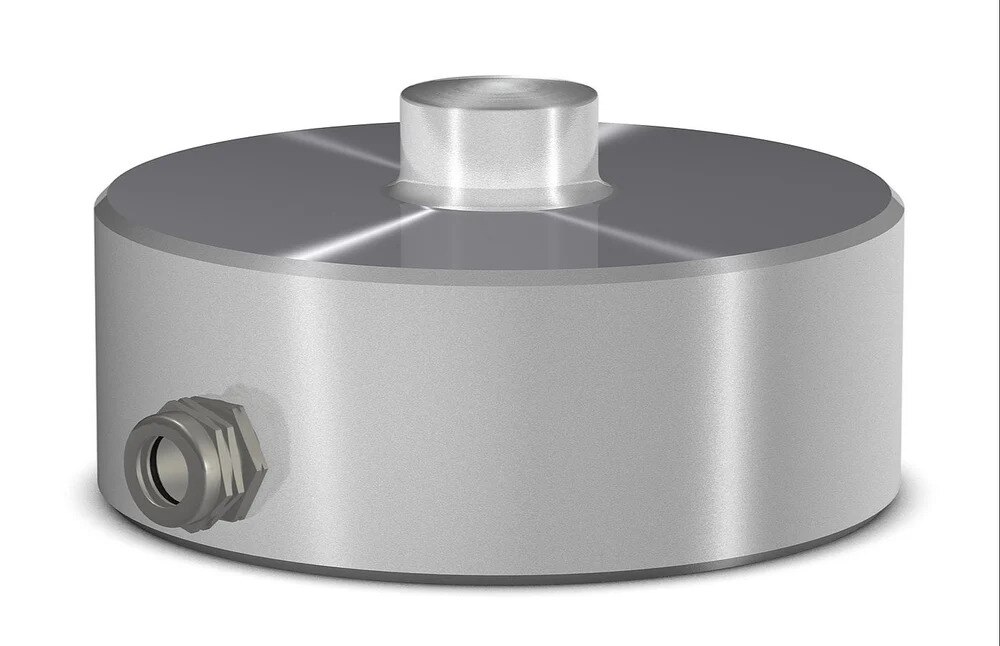

Button Load Cell

We are a leading Manufacturer of s-type load cell, weighbridge load cell, single point load cell, compression load cell, stainless steel load cells and button load cell from Vadodara, India.

Product Details: -

Brand ADI

Model 90610-T

Capacity 20 Ton

Material Stainless Steel

Ingress Protection IP65

Application Compression Testing

Features High Accuracy & Precision

Load Cell Certifications OIML

Output Sensitivity(FS) 2.0 +/- 0.1 mV/V

Creep Error (30 minutes) <= +/- 0.04

Accuracy Class OIML R60 C3

Temperature Effect on Zero <= +/- 0.005

Temperature Effect on Output <= +/- 0.005

Zero balance +/- 1% FS

Maximum Safe Overload 150% FS

Ultimate Safe Overload 200% FS

Recommended Excitation Voltage 10 to 12V DC

Maximum Excitation Voltage 15V DC

Input Resistance 770 +/- 20 Ohm

Output Resistance 700 +/- 7 Ohm

Insulation resistance at 50V DC >= 1000 M Ohm

Compensated Temperature Range -10 to +40 Deg C

Operating Temperatue Range -35 to +65 Deg C

We supply supreme quality Button Load Cell with the most superior standards and performance available.

Specifications:

Silo, Tank, Vessel Weighing

Low Profile, extremely compact loading assembly

Allows Vessel expansion & contraction

Integral Jacking Facility

1000 division accuracy

Environmental Protection IP68/ IP69K

Allowance for Angular Mis-alignment
