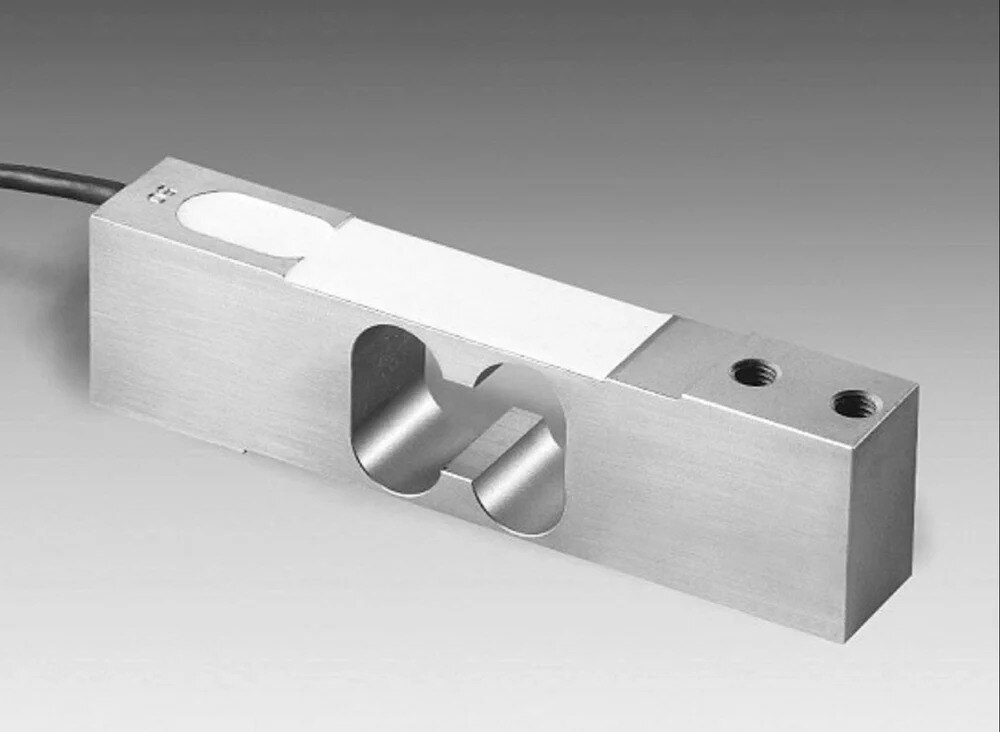

Single Point Load Cell

We are a leading Manufacturer of s-type load cell, weighbridge load cell, single point load cell, compression load cell, stainless steel load cells and button load cell from Vadodara, India.

Product Details:

Brand Flintec

Model PC1

Capacity 7.5 Kg-200 Kg

Material Stainless Steel

Ingress Protection IP67

Application Bench Scales

Features High Accuracy & Precision

Load Cell Certifications ATEX, OIML, NTEP

Output Sensitivity(FS) 2.0 +/- 0.1 mV/V

Combined Error <= +/- 0.0200

Creep Error (30 minutes) <= +/- 0.0166

Accuracy Class OIML R60 C3

Temperature Effect on Zero <= +/- 0.0140

Temperature Effect on Output <= +/- 0.0100

Zero balance +/- 5% FS

Maximum Safe Overload 200% FS

Ultimate Safe Overload 300% FS

Recommended Excitation Voltage 5 to 15V DC

Maximum Excitation Voltage 15V DC

Input Resistance 390 +/- 20 Ohm

Output Resistance 330 +/- 25 Ohm

Insulation resistance at 50V DC >= 5000 M Ohm

Compensated Temperature Range -10 to +40 Deg C

Operating Temperatue Range -35 to +65 Deg C

Load Cell Intervals (nLC)/Divisions 3000

Cable Length 3 Meter

We provide finest quality Single Point Load Cell with most premium standards and performance

Specifications:

Packaging & Grading Machines

Bench Scales

Bottle filling machinery

Bag filling equipment

Environmentally Sealed by Potting

Stainless Steel Construction

Wide range of capacities

High Accuracy

OIML, NTEP, ATEX, FM Certified
