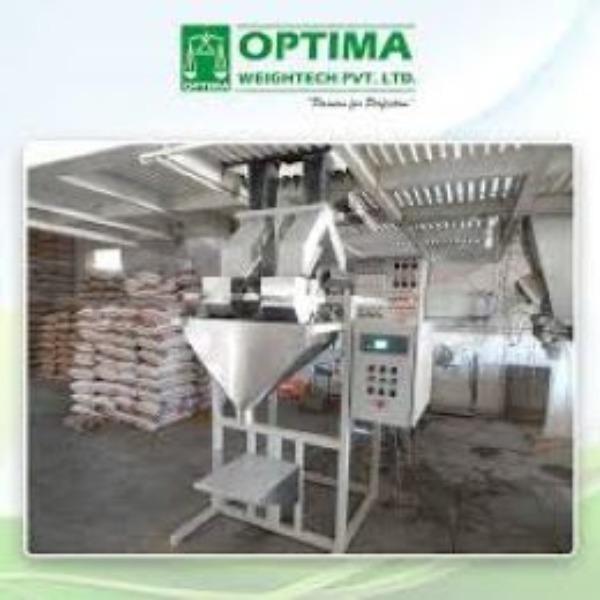

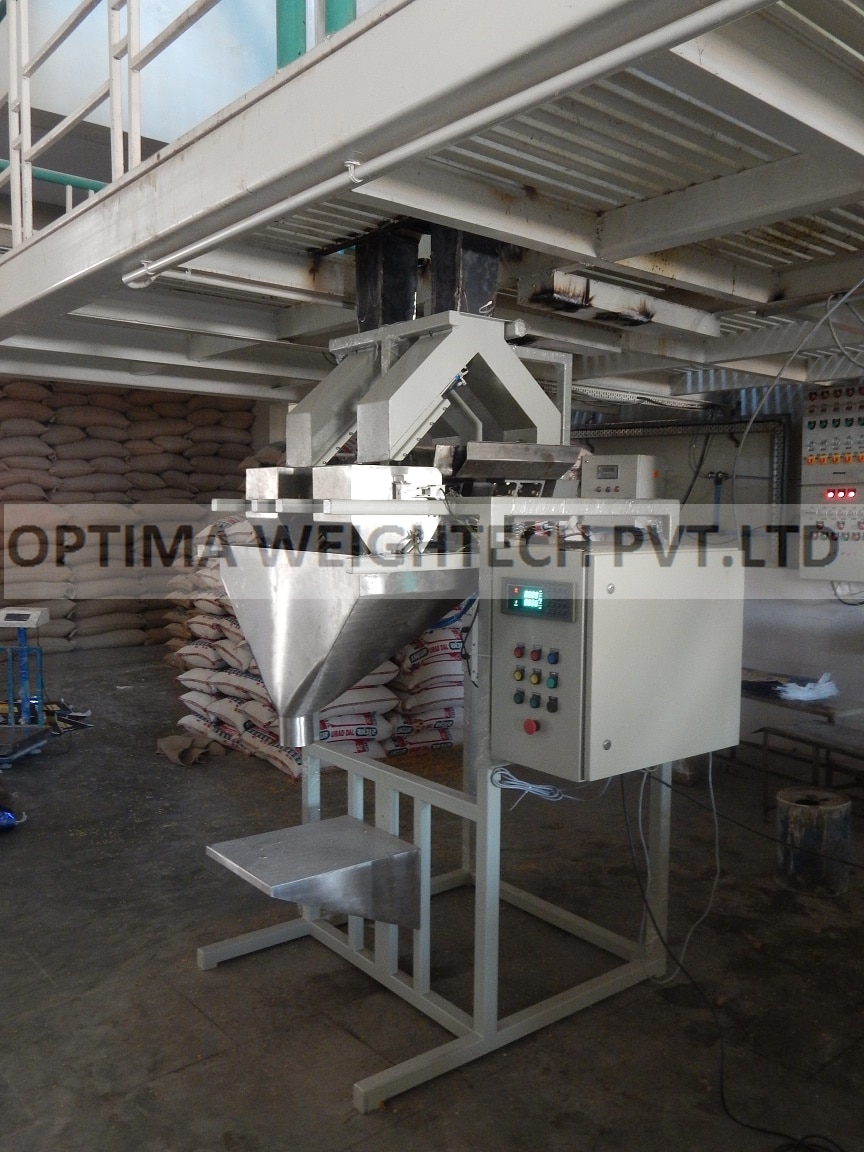

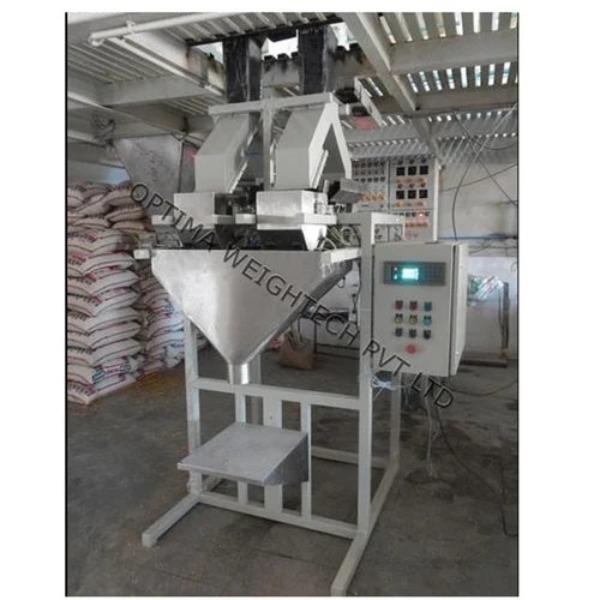

The Best Manufacturer of Bagging Machine, Flame Proof Weighing Scale, Liquid Filling Machine, Load Cell, Tank Weighing System in vadodara

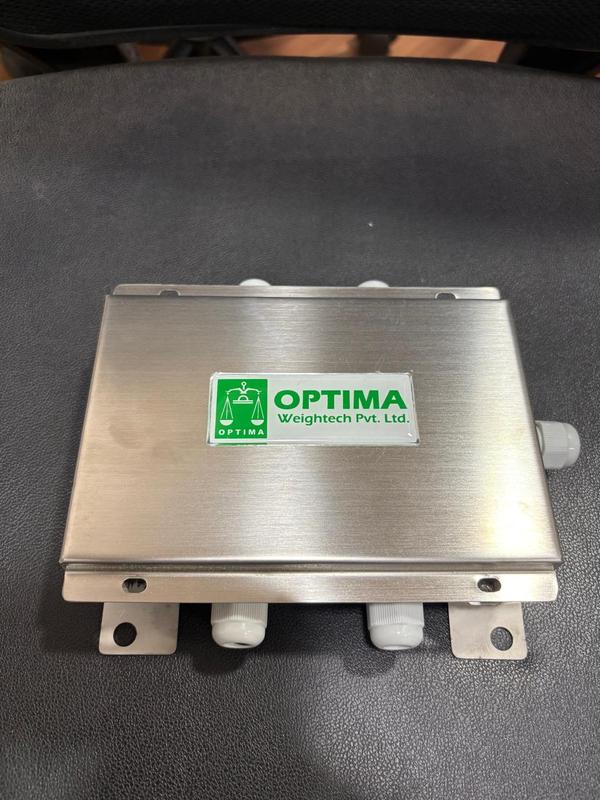

This is high quality Stainless Steel Junction Box for 4 Load cell with Equalisation Board / Summing Card.

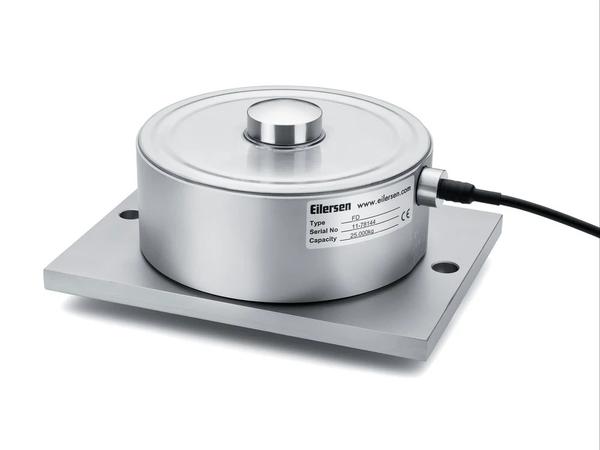

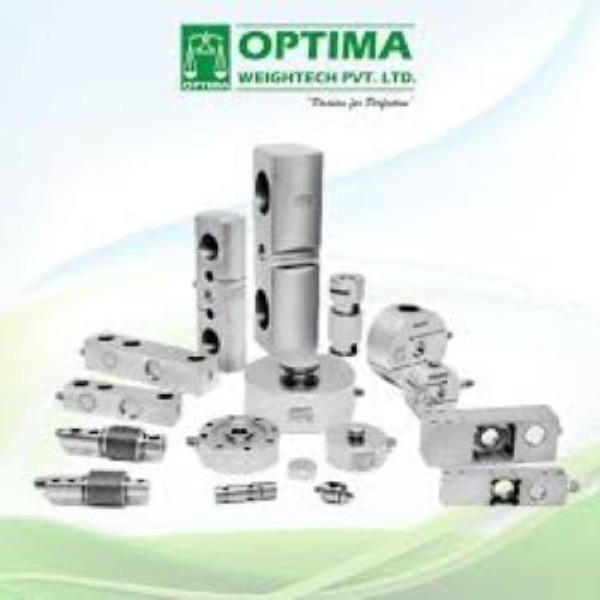

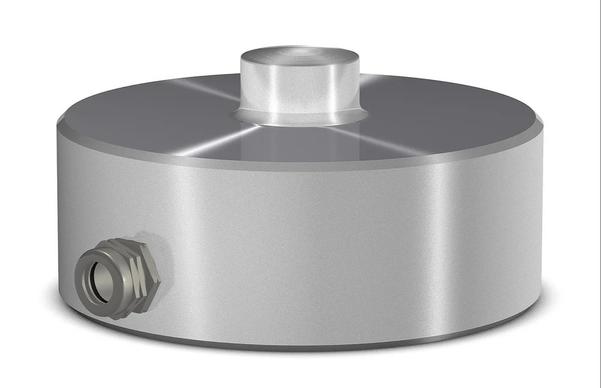

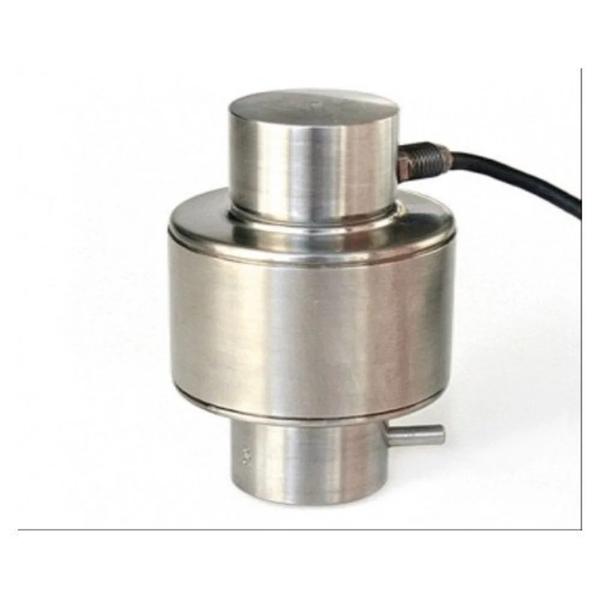

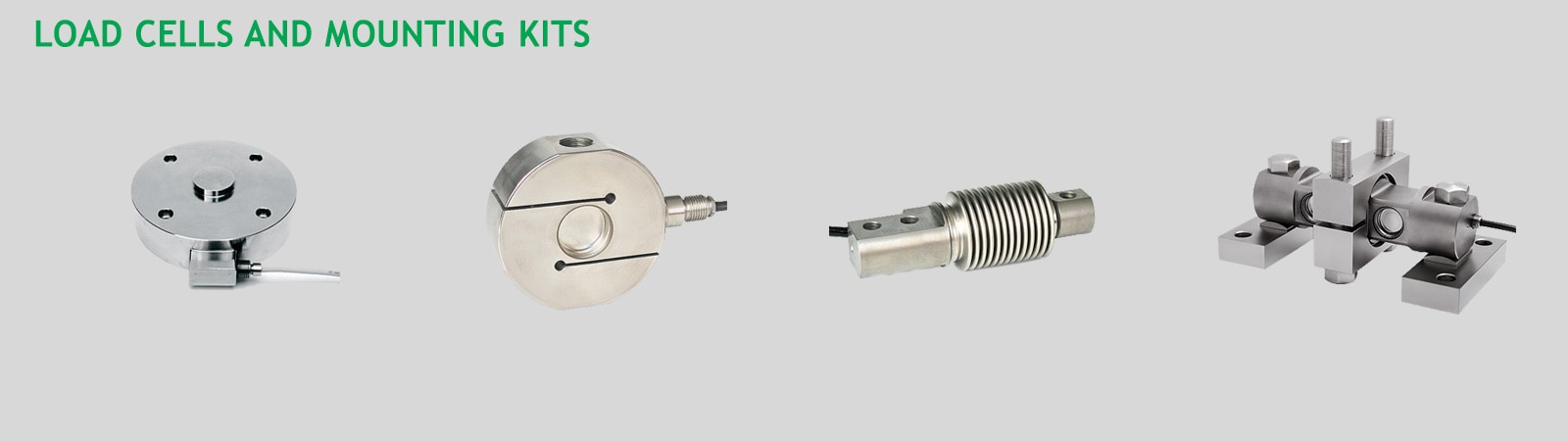

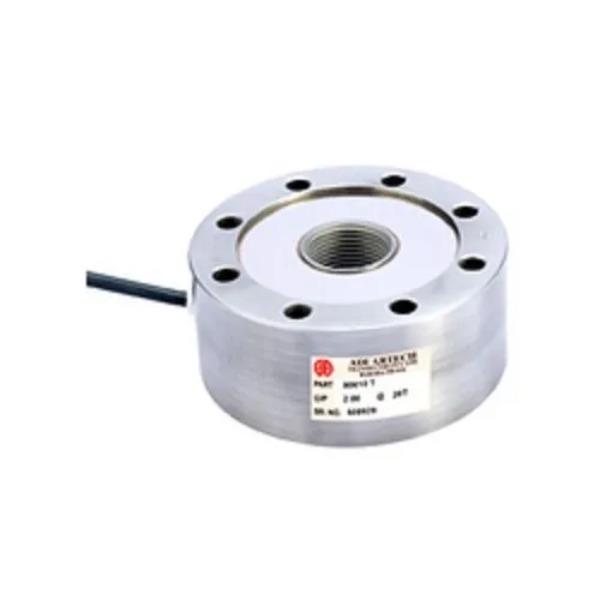

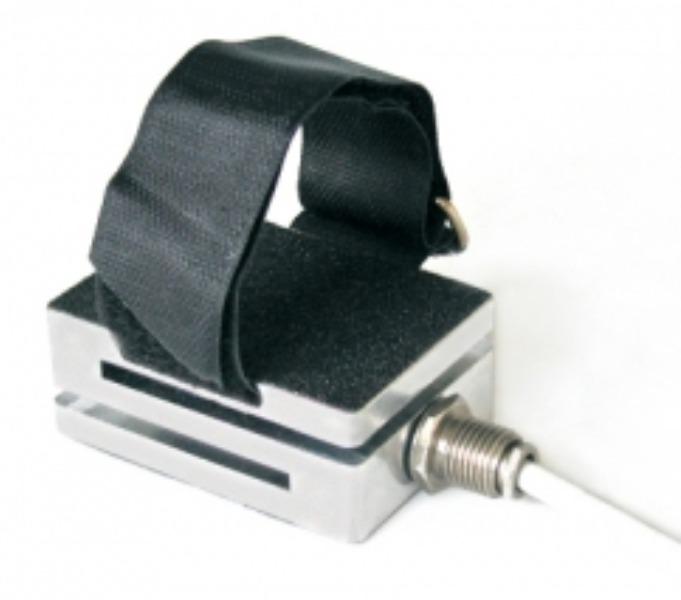

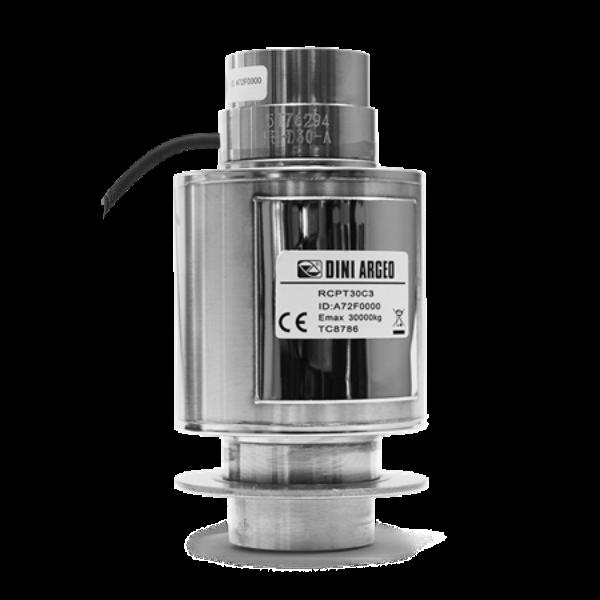

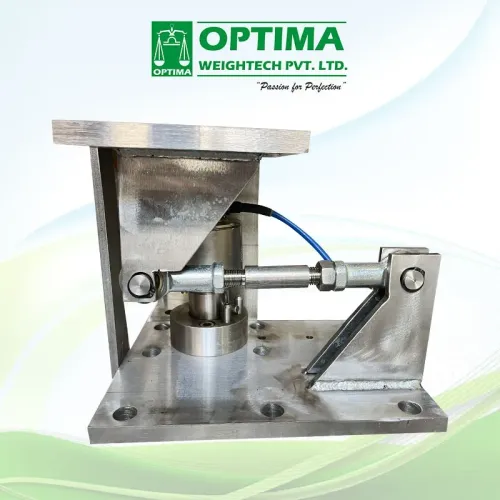

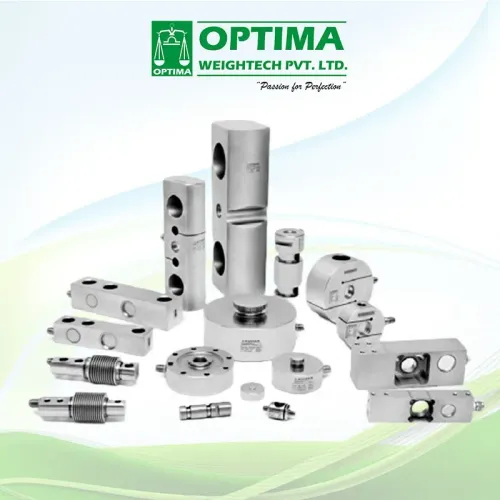

We are a leading Manufacturer of s-type load cell, weighbridge load cell, single point load cell, compression load cell, stainless steel load cells and button load cell from Vadodara, India. Product Details: - Brand ADI Model 90610-T Capacity 20 Ton Material Stainless Steel Ingress Protection IP65 Application Compression Testing Features High Accuracy & Precision Load Cell Certifications OIML Output Sensitivity(FS) 2.0 +/- 0.1 mV/V Creep Error (30 minutes) <= +/- 0.04 Accuracy Class OIML R60 C3 Temperature Effect on Zero <= +/- 0.005 Temperature Effect on Output <= +/- 0.005 Zero balance +/- 1% FS Maximum Safe Overload 150% FS Ultimate Safe Overload 200% FS Recommended Excitation Voltage 10 to 12V DC Maximum Excitation Voltage 15V DC Input Resistance 770 +/- 20 Ohm Output Resistance 700 +/- 7 Ohm Insulation resistance at 50V DC >= 1000 M Ohm Compensated Temperature Range -10 to +40 Deg C Operating Temperatue Range -35 to +65 Deg C We supply supreme quality Button Load Cell with the most superior standards and performance available. Specifications: Silo, Tank, Vessel Weighing Low Profile, extremely compact loading assembly Allows Vessel expansion & contraction Integral Jacking Facility 1000 division accuracy Environmental Protection IP68/ IP69K Allowance for Angular Mis-alignment

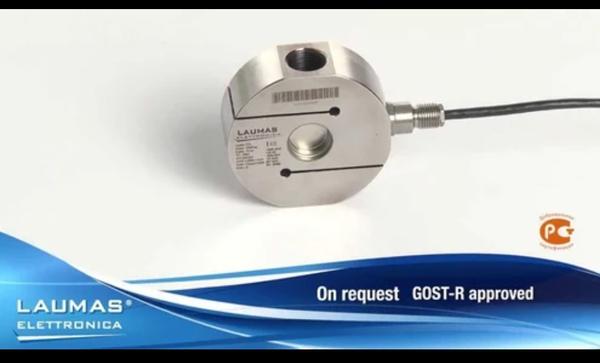

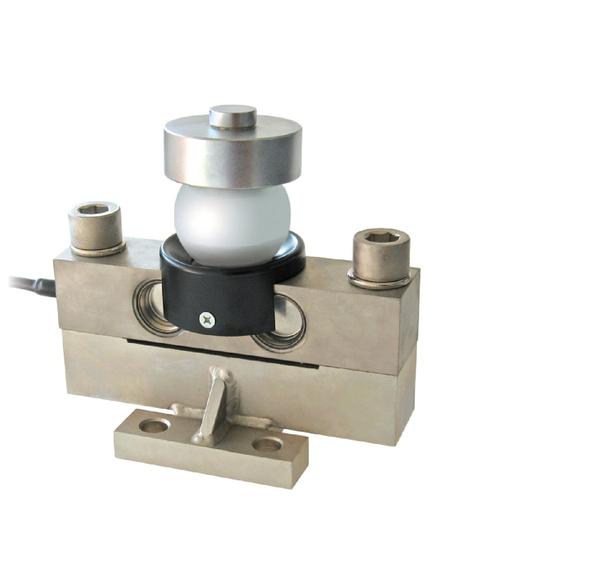

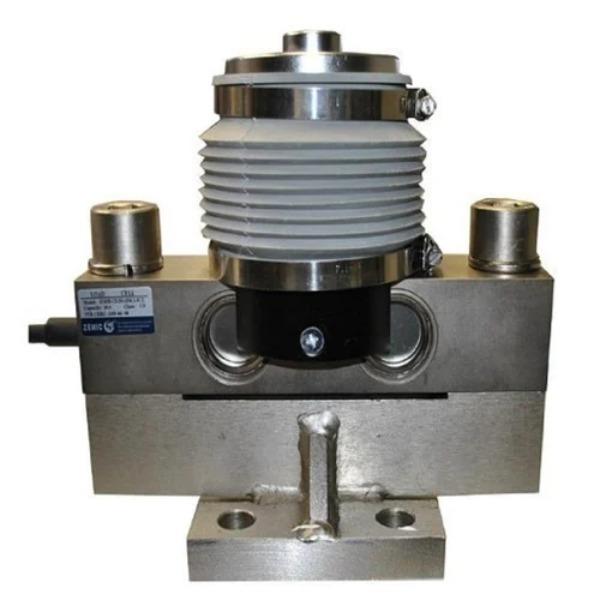

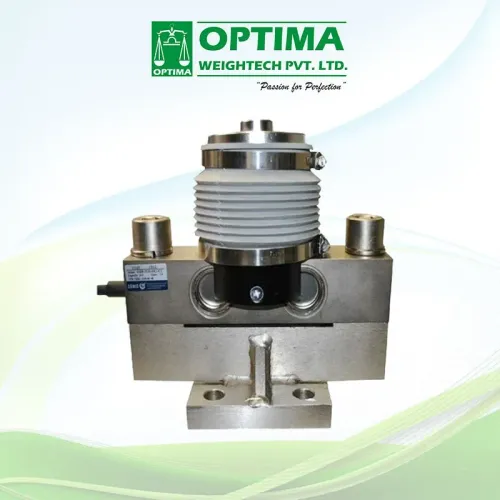

We are a leading Manufacturer of s-type load cell, weighbridge load cell, single point load cell, compression load cell, stainless steel load cells and button load cell from Vadodara, India. Product Details: - Model Laumas Material Stainless Steel Ingress Protection IP68 Application Silo and Tank Scale, Hopper scales, truck scales and weighbridge Features Hermetically Sealed Load Cell Certifications OIML Output Sensitivity(FS) 2.0 +/- 0.002 mV/V Accuracy Class OIML R60 C3 Load cells are sensors that detect force (mass, torque, etc.). When force is applied to a load cell, it converts the force into an electrical signal. Load cells are also known as “load transducers,” because they convert a load (force) into electrical signals.
