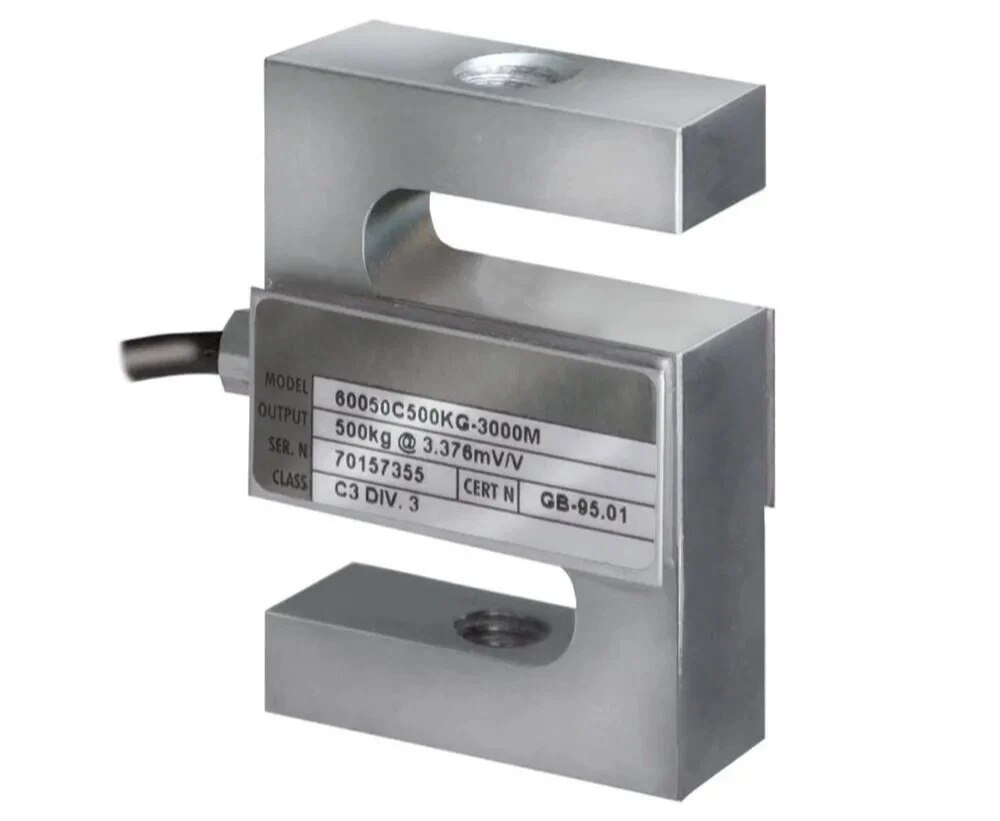

S-Type Load Cell

We are a leading Manufacturer of s-type load cell, weighbridge load cell, single point load cell, compression load cell, stainless steel load cells and button load cell from Vadodara, India.

Product Details: -

Brand Flintec

Model UXT

Capacity 50 Kg- 7500 Kg

Material Nickel Alloy Steel

Ingress Protection IP67

Application Suspended Hoppers

Features Hermetically Sealed

Load Cell Certifications NTEP, OIML, ATEX

Output Sensitivity(FS) 3.0 +/- 0.08 mV/V

Combined Error <= +/- 0.0200

Creep Error (30 minutes) <= +/- 0.0166

Accuracy Class OIML R60 C3

Temperature Effect on Zero <= +/- 0.0116

Temperature Effect on Output <= +/- 0.0100

Zero balance +/- 5% FS

Maximum Safe Overload 150% FS

Ultimate Safe Overload 300% FS

Recommended Excitation Voltage 5 to 15V DC

Maximum Excitation Voltage 15V DC

Input Resistance 400 +/- 50 Ohm

Output Resistance 350 +/- 2 Ohm

Insulation resistance at 50V DC >= 5000 M Ohm

Compensated Temperature Range -10 to +40 Deg C

Operating Temperatue Range -35 to +65 Deg C

Load Cell Intervals (nLC)/Divisions 3000

Cable Length 6 Meter

We provide finest quality S-Type Load Cell with the best in class standards and performance available

Features:

Designed for single or multiple load applications

Integral Loading Bracket

Truck Scale Conversions

Tension & Compression measurements

Level & Inventory Monitoring

Tank, Bin & Hopper Weighing
