Description
Optima Weightech offers the Laumas Weighing Controller Model W100, designed for industrial weighing and process-control applications. The W100 provides reliable weight monitoring and can be integrated with compatible load-cell-based weighing systems for applications such as hoppers, tanks, silos, batching systems, filling machines, and industrial weighing equipment.
Its compact design and process-control capabilities make it suitable for automation environments requiring accurate and efficient weight management. The exact communication interfaces, outputs, power supply, approvals, and technical specifications should be selected according to the required W100 configuration.
Applications: Tank & Hopper Weighing | Silo Weighing | Batching Systems | Filling Machines | Process Weighing | Industrial Automation

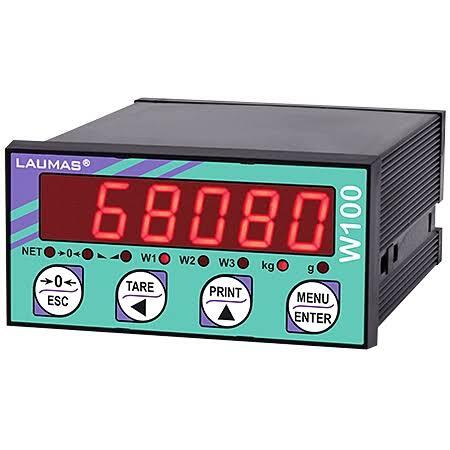

Weight indicator in DIN case, dimensions 48 x 96 x 130 mm. IP54 front panel protection. 4 key membrane keyboard. 8 indicator led. Real time clock/calendar.
Panel mounting
6 digit red LED display, 14 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 digital inputs, 5 relay outputs
OIML R 76:2006 approved, class III, 10,000 divis. 0.2μV/VSI
OIML R 61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999
